LIN Protocol Software

Ready-to-Integrate LIN protocol software to
power vehicle ECU communication

Enabling Low-Cost ECU Communication

LIN protocol software offers low-cost ECU communication where versatility and high bandwidth of CAN protocol is not required. LIN Bus protocol also serves as a sub network to CAN thereby reducing the amount of harness and thus achieves low-cost and ease of implementation.
LIN Protocol Software

Embitel’s LIN Protocol Software

Embitel offers a ready-to-deploy LIN protocol software package based on ISO 17897 standard. With our production-grade LIN stack, you can implement customized LIN Master and LIN Slave solutions.

Our LIN protocol stack enables communication capabilities in your automotive ECU development program at low-cost and with reduced turn-around time.

We offer this LIN Protocol stack under a one-time licensing fee model. This engagement model makes the LIN stack highly beneficial for our customers.

LIN BUS Protocol Stack: Details of the Software Architecture

LIN BUS Protocol Stack
  • LIN Device Drivers: It facilitates the access to the hardware resources and offers a hardware independent API to the upper layer.
  • LIN Hardware Abstraction Layer: Consists of LIN Interface and LIN TP Layer; Responsible for hardware abstraction, error handling and transport layer software services for diagnostics
  • LIN Network Management: Coordinates the transition between normal operation and bus-sleep mode of the network.

Features of Our LIN Protocol Stack Solution

LIN Bus Protocol Stack Integration, Configuration and Testing Service Offerings

Development and Integration of LIN Driver

Development and Integration of LIN Driver

  • Device Drivers development for the LIN Slave microcontroller
  • Device Drivers development for LIN Master microcontroller
  • Reusable device drivers to ensure reduced development time and cost
  • Support for driver integration for most MCU families
LIN Network Management

Node Configuration, LIN Network Management and LIN TP Configuration

  • Support for Static and Dynamic Configuration of Nodes (ECUs)
  • Already integrated Read/write to the stack function
  • Sleep/Wake up functionality for the nodes
  • Support for segmentation of large data packets over LIN TP
Development and Configuration of LIN Master

Development and Configuration of LIN Master

  • Configuration of the Scheduler Table based on SWRS and LDF files
  • Support for Unconditional, Event, Sporadic and Diagnostics frame
  • Skeleton code for Scheduler Table
  • Integration with the end-user application and HAL
  • Algorithm development for Scheduler Table
Protocol Stack Support

LIN Bus Protocol Stack Support and Maintenance Services

  • Documentation Support: Low-level design and High-level design documents
  • LIN conformance test using Vector Tools. This ensures robustness of Data Link Layer
  • Unit, Integration and Functional testing services
  • Support for MISRA C Report creation
Development and Configuration

Development and Configuration of LIN Hardware Abstraction Layer

  • Tx and Rx message configuration from LIN Description File (LDF)
  • Support for both tool based and manual configuration
  • Proprietary LDF to auto-code generation tool
  • Configuration for Software Filtering
  • Vector tool based LDF generation from excel sheet
  • Configurable HAL standard code is part of the stack package
Support for upgradation

Support for upgradation to LIN 2.2

  • Evaluation of existing LIN network to analyze limitations, compatibility and other issues that need to be addressed
  • Support for new network design or changes in existing LIN network based on the analysis.
  • Integration of LIN 2.2 by updating the previous version of LIN protocol
  • Support for thorough testing and validation of the network after integration of LIN 2.2 protocol to ensure performance and reliability of the nodes.

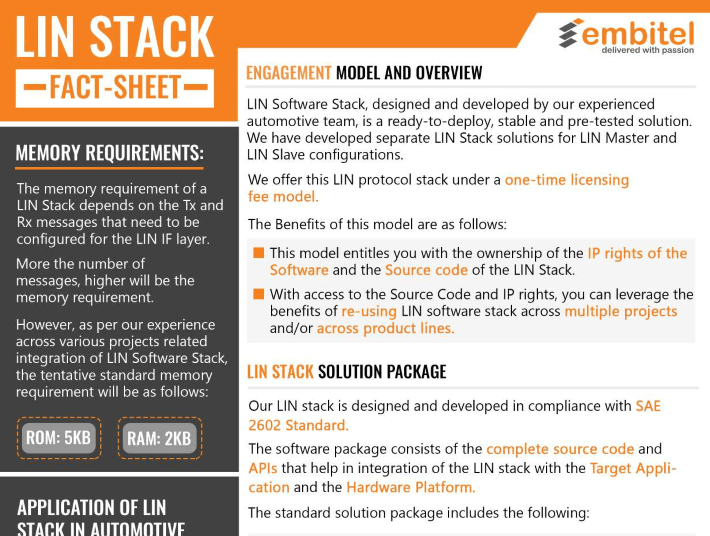

Know more about our LIN protocol software business model, features,
use-cases, and technical specifications.

Embitel’s Advantage

Industry-wide Recognition

We have integrated LIN stack for several production programs across the globe. The extensive experience gives us an edge in the implementation of on-board diagnostics for automotive use-cases.

CMMi Level 3 Certified

As a CMMI level 3 certified organization, we have a robust process model in place. This ensures that the LIN stack along with other stacks are reliable, bug-free and efficient.

Configuration & Integration Support

Our LIN protocol software is designed to be fully configurable as per project specifications. We provide support for configuration of LIN Stack based on LDF .

Support for After-market Solutions

Development, testing and maintenance support for after-Market Products for Telematics, ADAS, remote vehicle diagnostic applications.

Industry Experience

FAQs About LIN BUS Protocol Stack Solution

Can you share details of the layered Architecture of your LIN Bus Protocol Stack?

Ans. The layered architecture of our LIN Protocol stack includes:

  • Low-level drivers (LIN, MCU, EEP, IVT, Timer)
  • LIN Bus Protocol Stack (LIN Network Management and LIN Interface)
  • LIN TP Layer
  • UDS Stack (ISO 14229)
  • Application Layer
The Bootloader includes:
  • Bootloader Application
  • UDS (ISO14229) Based Bootloader
Can you enlist the modules and the major functionalities supported by your LIN Protocol Stack solution?
Ans. Our LIN protocol stack includes the following modules LIN Master and Slave Drivers
  • LIN Master and Slave Driver, in compliance with LIN 2.1 specifications (SAE J2602)
  • Interrupt based data handling (both Transmission and Reception).
  • Error handling mechanism is part of the LIN driver software.
LIN Interface (LIN IF)
  • LN IF handles both Tx and Rx messages.
  • Schedule table will be part of LIN Interface
  • Tx and Rx messages will be configured in configuration (*.c, *.h) files.
  • Signals will be extracted as per LDF file and sent to application layer via APIs
LIN TP
  • Handles multi-packet transmission and reception
What about the hardware dependency of your LIN Bus Protocol Stack?

Ans. LIN Drivers are developed for the specific microcontroller used in the automotive application. All other modules of the LIN software are hardware agnostic.

We have expertise in developing LIN drivers for all the widely used MCU families. This includes Renesas, TI, Fujistsu and others.

Can you talk about some of the automotive ECUs for which you have successfully delivered LIN bus protocol stacks?

Ans. Our automotive team has delivered several LIN bus protocol stack projects to customers from across US, Europe and India.

We can share the detailed case studies of the projects and related information, once we sign the Non-disclosure agreement.

Are the LIN bus protocol Stack integration and configuration services part of the stack?

Ans. Yes. As per our Service Level Agreement (SLA) for the LIN bus protocol Stack, we will provide the software configuration and integration services, along with the LIN bus software stack license.

The integration and configuration services will take care of both low-level drivers as well as the application-level integration.

What kind of tests is your LIN bus protocol stack subjected to, in order to ensure its integrity in production environment?

Ans. We perform various tests in the course of LIN software stack development. Prior to the final project delivery, our LIN bus protocol stack solution undergoes the following testing procedures:

  • Unit level Testing
  • Functional Testing
  • Data Link Layer Compliance testing, using Vector Testing Tools
How is the conversion of LDF file to code, handled by your automotive team? Is it manual or tool-based?

Ans. Whether to use the manual method or the PC based tool, for the conversion from LDF file to configuration file code, will depend on the size of the file.

If there are considerable numbers of Tx and Rx messages for configuration, we will prefer to use our proprietary PC based auto-code generator tool.

Can you share some details about your proprietary tool?

Ans. The PC-based tool runs on Windows OS and has been developed by our automotive team. It reads the LDF file and converts it into configuration files instantly.

Our in-house LDF to auto code generation tool has the following benefits:


  • Designed for generating MISRA C compliant configuration files.

  • Code generation is much faster than the manual method (Manual Method takes 2-3 weeks depending on LDF file size).

  • It not only saves the time but also cuts down the cost.

Can you throw some light on the foot-print of the LIN bus protocol stack?

Ans. Our LIN bus software stack is light-weight in size. The size of flash memory is 6 kB and RAM size is 1 kB. The RAM size could go higher depending on the size of the configuration file.

Is your LIN bus protocol stack a modular software solution?

Ans. Yes, Our LIN bus protocol stack is completely modular. There are no global variables exchange between the programs files and every functionality is invoked with the help of specific APIs.

Modularity makes the LIN software stack light-weight and also easy to deploy in number of production programs, without any compatibility issue.

Is your LIN bus protocol stack solution Master or Slave?

Ans. We offer separate stack solutions for both LIN Master and LIN slave. As LIN is not a broadcast protocol, the LIN master is tasked to initiate the command and the slave has to act on it.

Depending on the project specifications, we will deliver LIN master, LIN slave or both.

Do you provide the design documents along with the LIN software stack? Please share the details.

Ans. High-Level Design Document and Low-Level Design Document, will be a part of the LIN bus software stack package. In addition to that, we will also provide Functional Test Plan & Report and MISRA compliance Report.

These documents contain every detail you may need to make some enhancements to the stacks or to integrate the stack solution in multiple production projects.

Do you support for upgradation to LIN 2.2 for existing solutions?

Ans. We offer complete support for upgrade to LIN 2.2 from its LIN’s previous versions. Here’s a snapshot of services we provide to help you upgrade to the latest version of LIN i.e LIN 2.2.

Consulting: A LIN 2.2 upgrade can be a complex process, so consulting services can help organizations determine the best approach based on their specific needs and infrastructure.

Implementation: Once a plan has been developed, our LIN 2.2 implementation services can help you carry out the LIN 2.2 upgrade efficiently and effectively.

Testing and Validation: Before and after the upgrade, we test and validate the new LIN 2.2 system to ensure that it’s functioning correctly and meeting performance expectations.

Support and Maintenance: Even after the upgrade is complete we offer ongoing support and maintenance services that may be necessary to keep the LIN 2.2 system running smoothly and address any issues that arise.

Knowledge bytes

LIN protocol is a sub-network deployed in both passenger and off-road vehicles. Unlike CAN, which is a broadcast protocol, LIN is a master/slave communication standard.

Simpler functionalities like wiper, mirror control and washer etc. are usually handled by LIN network.

The LIN master ECU is integrated with the body control module, from where it initiates the command. The LIN master nodes will receive the command over LIN network and act accordingly.

LIN Slave nodes don’t communicate with other networks, unless initiated by the LIN master.

Adding too many nodes (ECUs) to the network causes Network BUS slow down. To prevent this, a LIN sub-network is designed. The body control module usually acts as a gateway between the main network (CAN Bus) and the subnets (LIN Bus)

LIN Bus is a single wire network best suited for small applications like wiper and washer etc. Using CAN for such application lead to increase in the software and hardware cost.

LIN 2.2 is the latest version of LIN bus protocol released in 2010. It is also the most implemented version of LIN protocol as it has several advantages compared to its previous versions.

LIN 2.2 offers several advantages over previous versions of the LIN protocol, including:

Increased speed: LIN 2.2 operates at a maximum speed of 20 kbps, which is twice as fast as the previous LIN 2.0 and 2.1 versions.

Improved scalability: LIN 2.2 supports up to 16 slave nodes on a network, which is four times the number of slave nodes supported by previous versions of the protocol.

Enhanced reliability: LIN 2.2 introduces improved error detection and correction mechanisms, which help to ensure reliable data transmission even in noisy environments.

More robust network management: The LIN 2.2 protocol includes several new features for network management, such as improved wakeup functionality and support for network synchronization.

Lower power consumption: The LIN 2.2 protocol includes several new features for reducing power consumption, including a sleep mode for slave nodes and reduced idle current consumption.
