Library Of Vehicle Diagnostics And ECU Communication Protocol Software Stacks

Electronic Control Units in a vehicle communicate with each other and the external devices (Diagnostics devicesTelematics Devices, etc.) with the help of a common language called protocols.

For the complex Electronic/Electrical (E/E) systems in automobiles, robust network communications and diagnostic software protocols are critical for tracking and controlling of vehicle parameters.

Use Cases of Automotive Protocol Stacks

SAE J1939 in Fleet Management of Commercial Vehicles

CAN BUS protocol implementation for OTA upgrade of automotive ECU

UDS (ISO 13400) integration for UDS based Bootloader and off-board vehicle diagnostics

CAN FD protocol integration for faster ECU re-programming and end-of-line software testing

ISOBUS protocol integration for agricultural and industrial vehicles

Development of CAN driver API to support hardware abstraction of data communication via physical layer (CAN BUS

Implementation of LIN Stack for Roofing System, Wiper Control , Door lock/unlock system

Remote vehicle diagnostics, Gateway Functionality and Flash Bootloader application powered by DoIP (ISO 13400)

A Handbook of our Vehicle Diagnostics and ECU Communication Protocol Software:

Learn about our stacks, integration services and
configuration tools

A Handbook of our Vehicle Diagnostics and ECU Communication Protocol Software:

Learn about our stacks, integration services and configuration tools


List of ECU Communication Protocol Stacks

In compliance with Automotive and International Standards (SAE and ISO), we have developed a suite of pre-tested and pre-packaged vehicle network communication protocol stacks. Our COM stacks such as CAN, LIN, FlexRay etc. power cutting edge automotive solutions across the globe.

Our stacks have been developed as per the CMMI Level 3 and ISO9001:2008 guidelines. The coding guidelines conform to MISRA C.

All the stacks can be readily integrated with any Automotive ECU and tooling applications. Our proprietary configuration and end-of-line tools ensure faster configuration and integration of the protocol stacks.

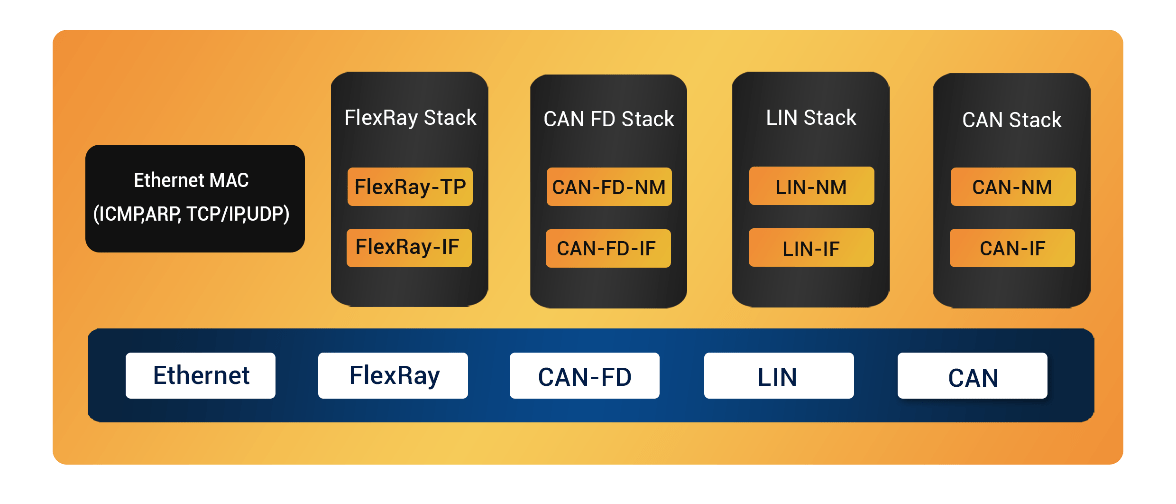

Library of ECU Communication Stacks

Library of ECU Communication Stacks

FlexRay (ISO 10681-1:2010)

  • A deterministic and composable dual-channel ECU communication protocol
  • Best suitable for applications that stipulate higher bandwidth e.g. Body Control Module, ADAS etc.
  • We provide configurable FlexRay IF and Transport Layer and FlexRay drivers for industry-grade MCU platforms


  • Faster and flexible upgrade to Classical CAN
  • Ideal communication protocol for modern solutions like Telematics, ADAS, Infotainment System

LIN Stack

  • We offer separate LIN Bus Protocol stacksolutions for LIN Master and LIN Slave
  • Deployed for roofing system , central locking system, wipers, etc.

CAN 2.0

  • Used as the choice communication protocol in passenger vehicles
  • Our proprietary PC based CAN configuration tool reduces the time-to-market considerably

Vehicle Diagnostics Protocol Stacks Development and Integration

We have a library of vehicle diagnostics protocols comprising UDS, KWP 2000, OBD 2, WWH-OBD etc. enable ECU diagnostics for both server and client applications.

Our unique business model gives complete ownership of the protocol software along with the source code. It can power multiple production programs, hence saving cost and development time in the process.

The stacks have been developed as per the CMMI Level 3 and ISO9001:2008 guidelines. The coding guidelines conform to MISRA C.

Vehicle diagnostics can be categorized as On-board and Off-board diagnostics.

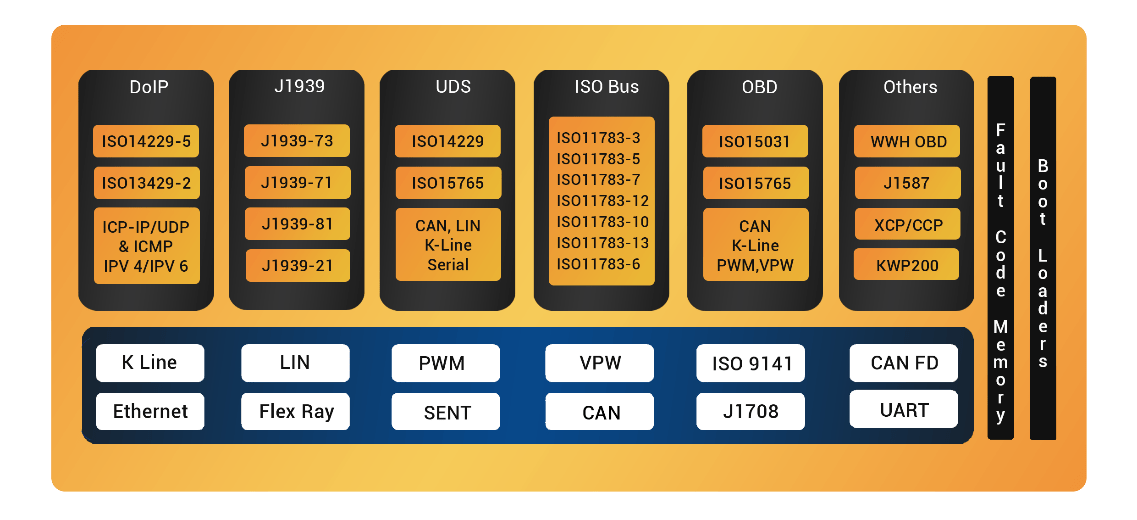

Library of ECU Diagnostics Stacks

Library of ECU Diagnostics Stacks

Support for on-board diagnostics implementation

Our OBD 2 & WWH-OBD protocol software enable on-board diagnostics for both automotive ECU as server and external diagnostic tester as client. We take care of every aspect of on-board diagnostic implementation- from protocol stack configuration and integration to testing.


  • Enables on-board diagnostics related to mostly emission control and engine monitoring
  • Best suited for ECU applications in passenger cars and light commercial vehicles


  • An extension of OBD 2 protocol
  • Can be deployed for both passenger and commercial vehicle programs
  • It is a harmonized protocol that caters to different CAN bus baud-rates (125 kbps/250 Kbps)

Off-board Diagnostics Implementation

ISO 14229-2 based Unified Diagnostic Services (UDS) is the de facto protocol for vehicle off-board diagnostic. However, there are many other OEM-specific and older protocols too in use. Our library of vehicle diagnostics stacks comprises a host of such industry-proven protocol software. Here is a list of all off-board diagnostic protocol software that we have deployed in several automotive solutions.

Diagnostics over IP (DoIP)

  • Enables remote diagnostics of the vehicle over an Internet Protocol
  • Leverages ethernet as the physical medium
  • Supports data transfer rate of up to 100 Mbps
  • Best suited for applications like Infotainment System, ADAS, Telematics, etc.

SAE J1939

  • Enables in-vehicle communication and diagnostics for commercial vehicles
  • J1939 specifications are defined for CAN BUS
  • Best suited for automotive ECU and tooling applications in commercial vehicles

Unified Diagnostics Service

  • Designed as per ISO 14229 standard; implements diagnostic services
  • Implements UDS based Bootloaders and powers Tooling Solutions for re-programming, remote diagnostics
  • Automobiles now mostly use UDS for off-board diagnostics

ISOBUS (ISO 11783)

  • An extension of SAE J1939 protocol
  • Designed to meet diagnostics needs of agricultural and off-road vehicles

J1587 stack over J1708 Physical Layer

  • Used in commercial vehicles for vehicle communication and diagnostics services.
  • Readily available for integration with customer’s application

KW 1281

  • It is an OEM-specific ECU diagnostics protocol implemented in various VW and Audi vehicles.
  • We offer readily available KW 1281 protocol software with configuration and integration support.

Readily Available Tooling Solutions for Protocol Software Configuration

  • Supports multiple configuration
  • Generates cfg.c and cfg.h files as per the configuration
  • Tooling solution for both Client and Server side
  • Support for integration with PCAN, Vector or any third party Hardware
  • Generates the cfg.c and cfg.h from .dbc file (CAN Matrix)
  • Auto Generates MISRA C compliant code
  • Supports J1939, UDS based reprograming
  • Supports physical medium like LIN, CAN and CANFD, FlexRay
  • Integrates with PCAN, Vector or any third party hardware
  • Generates cfg.c and cfg.h files from LDF file (LIN Configuration)
  • Auto generates MISRA C compliant code
  • PC based tool to support configuration of Calibration Block
  • Helps configure the parameters for different variants of a vehicle
  • Generates the HEX file based on the parameter configuration
  • Our proprietary tool for converting .dbc file from the OEM to .hex configuration file
  • Saves weeks of effort required in manual conversion of configuration files
