OBD2 Protocol Software

A Ready-to-Integrate OBD2 protocol software to power Vehicle ECU On-Board Diagnostics

Enabling Vehicle ECU Built-in Diagnostics Services

OBD2 protocol software is at the core of an automotive ECUs’ built-in self-diagnostic system. It enables diagnostics-based communication with the ECUs such as Engine control unit, transmission control unit, electronic brake modules and more to detect and control ECU failures.

OBD2 protocol stack

Embitel’s OBD2 Protocol Software

Embitel offers a ready-to-deploy OBD2 protocol software package based on ISO 15031 standard. With our production-grade OBD2 stack, you can implement on-board diagnostics communication capabilities in your automotive ECU development program with reduced turn-around time.

This OBD2 protocol stack is ideal for supporting on-board diagnostics functions within all kinds of vehicles.

We offer this OBD2 Protocol stack under a one-time licensing fee model. This engagement model makes the OBD2 stack highly beneficial for our customers.

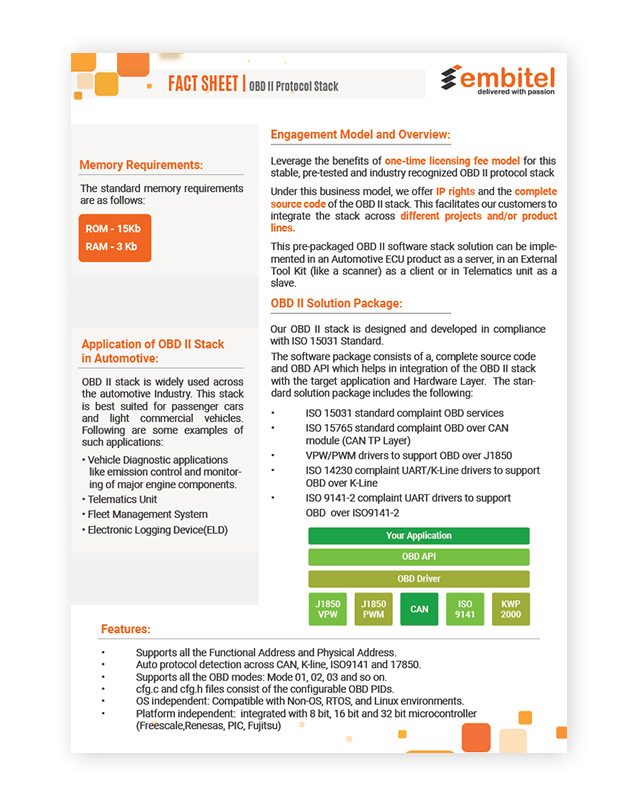

Know more about our OBD2 protocol software business model, features, use-cases, and technical specifications.

Know more about our OBD2 protocol software business model, features, use-cases, and technical specifications.

handbook

Striking Features of our OBD2 Protocol Stack

Embitel’s Service Offerings for SAE OBD2 Software and its Integration

Protocol Stack Development

OBD2 Protocol Stack Development for Automotive ECU and Tooling Applications

  • Implementation of physical layers (CAN, J1850. K-Line and more) as per the project requirement
  • Development of OBD API which helps in integration of the OBD II stack with the target application and Hardware Layer
  • Implementation of OBD modes and PID (Parameter IDs’) as per OBD2 protocol
  • OBD2 software integration with automotive ECU application software
  • Fault code memory implementation
  • Integration of OBD2 Bluetooth Stack
After-Market Automotive Products

Solution Design for After-Market Automotive Products

  • OBD2 software integration, design and development services for after-market automotive products/solutions
  • Solution Design for After-Market Automotive Products
  • OBD2 software integration, design and development services for after-market automotive products/solutions
  • Support for access to vehicle parameters, development of OBD diagnostic interface, data collection and processing
  • Development, testing and maintenance support for Telematics, ADAS, Remote Vehicle Diagnostics, Driver Behavior Analysis
  • Support for OBD2 Bluetooth and OBD2 Android in solution development
  • Support for software development for OBD2 Scanner tooling system
Data Collection Solutions

Vehicle Data Collection Solutions for OBD2 protocol

  • Consulting workshops to understand the vehicle data collection requirements for OBD2 protocol implementation
  • Complete design and functional audit of the existing/legacy system (if any)
  • OBD2 software design and development services for data collection from on-road vehicles
physical layers implementation

OBD2 protocol stack physical layers implementation

  • Support for implementation on all automotive physical layers – CAN, K-Line, ISO9141, PWM and VPW (J1850)
  • Development of OBD drivers

Embitel’s Advantage

Industry-wide Recognition

We have integrated OBD2 stack for several production programs across the globe. The extensive experience gives us an edge in the implementation of on-board diagnostics for automotive use-cases.

CMMi Level 3 Certified

As a CMMI level 3 certified organization, we have a robust process model in place. This ensures that the OBD2 stack along with other stacks are reliable, bug-free and efficient.

Configuration & Integration Support

Our OBD2 protocol software is designed to be fully configurable as per project specifications. We provide support for configuration of Tx and Rx messages through CAN IL tool.

Support for After-market Solutions

Development, testing and maintenance support for after-Market Products for Telematics, ADAS, remote vehicle diagnostic applications.

Industry Experience

Video Explaining the Need for OBD2 protocol and Off-board Diagnostics

OBD2 Protocol Software Architecture

  • ISO 15031 standard complaint OBD services
  • ISO 15765 standard complaint OBD over CAN module (CAN TP Layer)
  • VPW/PWM drivers to support OBD over J1850
  • ISO 14230 complaint UART /K-Line drivers to support OBD over K-Line
  • ISO 9141-2 complaint UART drivers to support OBD over ISO9141-2

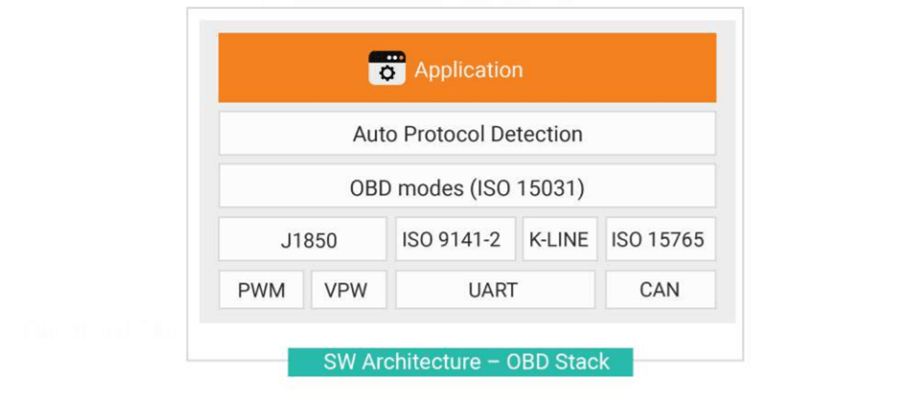

OBD2 Protocol Software Architecture
What is OBD2 software Stack?

Ans. OBD2 (On-Board Diagnostics) stack, designed and developed by our expert automotive developers, is a set of embedded software services implemented in compliance with ISO 15031 standards for automotive.

This pre-tested and pre-packaged stack can be readily integrated with your diagnostic application for emissions control and monitoring of major engine components.

This stack is best suited for passenger cars and light commercial vehicles. We also have expertise and experience to support OBD2 protocol implementation over various physical network layers.

What is included in the OBD2 stack as a software package?

Ans. When you purchase OBD2 software stack from us, following pre-tested OBD modules and drivers are included in a standard package:

  • ISO 15031 standard complaint OBD services
  • ISO 15765 standard complaint OBD over CAN module (CAN TP Layer)
  • VPW/PWM drivers to support OBD over J1850
  • ISO 14230 complaint UART/K-Line drivers to support OBD over K-Line
  • ISO 9141-2 complaint UART drivers to support OBD over ISO9141-2
Do you also provide OBD2 software stack integration services in addition to software stack package?

Ans. In addition to our software package, we also offer integration support which includes integration of the stack to your hardware.
Our automotive team will provide end-to-end support for customization and integration of the OBD2 software stack as per the business need of your target application.

What are the testing services that you provide ?

Ans. Verification and validation is being done post integration of the on-board diagnostics stack with your target application.

Is your OBD2 software solution a Server or a Client?

Ans. The OBD II stack solution, designed by our embedded software developers, can be implemented either as Server or Client as per your project/application requirement.

We can either integrate it into an automotive control unit as a Server or in any external tool (OBD2 scanner or telematics head unit) as a Client.

Does your stack have any dependency on the underlying hardware platform?
Ans. No. Our OBD2 software solution is hardware platform independent. Our software development team has designed OBD services (ISO 15031) and OBD Over CAN module (ISO15765) as platform agnostic software
Is the source code of your OBD 2 stack complaint to a proven standard?

Ans. Yes. Embedded C based software code has been developed in complaince with MISRA-C standard for automotive applications.

We are a CMMI Level 3 organization. We follow industry complaint project management and software development best practice.

The OBD2 source code has also been tested using the third party tools.

Have you partnered with customers to integrate OBD2 solution for end-of-line testing and/or production programs?

Ans. With more than 10 years of business experience and automotive domain expertise, we have partnered with Global OEMs’ and Automotive Suppliers for multiple projects of OBD (and other automotive stacks) integration projects

Our team has collaborated for end-of-line testing and OBD2 implementations across multiple OEM platforms and tooling applications.

Please share details about support and maintenance services for the OBD2 Protocol stack

Ans. Post-production support for a specific period of time after the delivery of the On-board diagnostics (OBD2) stack.

The SLA, warranty period and number of months of support is included in the contract based on the discussions with customer’s team and project requirements.

Please share details regarding business model and license policy

Ans. We work on the business model of one-time licensing that provides the customer with source code and IP rights.

With IP rights, customers can implement/re-use the OBD2 stack for multiple projects or platforms.

Can the licensing agreement be customized?

Ans. Yes, a customized contract can be drafted based on your business requirements and budget allocated to the project.

OBD2 Software Design Implementation: Hardware and Software Expertise

OBD moduleHardwareSoftware
OBD servicesNAISO 15031
OBD over CAN CAN support in microcontroller
CAN transceiver
ISO15765 (CAN TP layer)
OBD over J1850 (VPW/PWM) PWM support in microcontroller
1850 transceiver
PWM driver VPW/PWM driver based on J1850 standard
OBD over K-Line UART support in microcontroller
K-Line/ISO9141 transceiver
UART driver K-Line driver (based on ISO14230)
OBD over ISO9141-2 UART support in microcontroller
K-Line/ISO9141 transceiver
UART driver ISO9141-2 driver

Why Partner with us for OBD2 Protocol Stack Integration Project:

  • Leverage our automotive domain expertise and project experience in OBD II  protocol stack integration to reduce time-to-market and application development costs
  • We are a CMMi Level 3 and ISO 9001:2008 & ISO 27001:2013 certified organization
  • Robust project management processes based on EmbiQ – an engagement model. This model is built on three critical pillars – People, Process and Technology.

OBD II Software Stack Business Impact: Customer Success Story

Business Challenge: Design, development and testing of OBD II stack for Engine Control Unit

Our team of automotive embedded developers designed following OBD modules after the initial requirement gathering workshop with the automotive customer:

  • Diagnostic System Manager (DSM) with Fault Code Memory: DSM modules collects test results reported by the monitoring functions. Current fault states and derived error memory entries are stored in standard form and is readily accessible to the application software and Tester communication.
  • OBD Diagnostics Services: This module provides external access to fault code memory and other emission relevant data. A generic OBD scan tool can be connected to the ECU to read emission related data.

For more details about the OBD implementation and tools and technology deployed for this project, please refer to the entire case-study here.

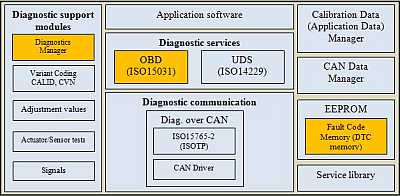

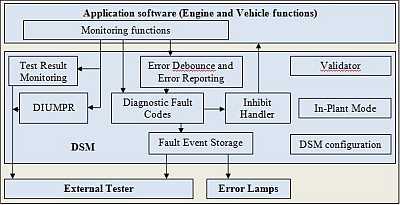

Diagnostic System Manager
OBD Diagnostics Services
